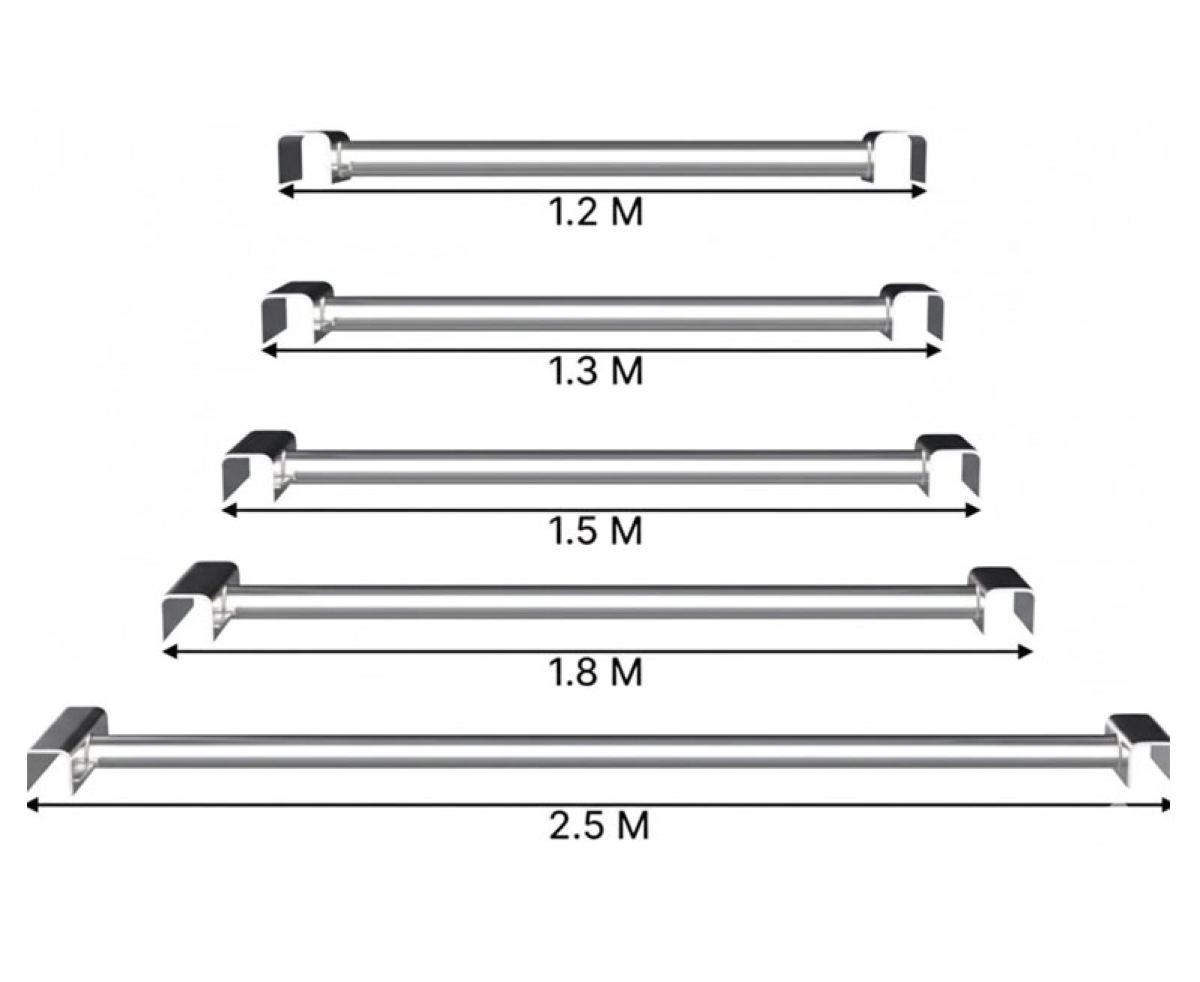

The Cuplock Transom is a key platform-supporting component of modular scaffolding systems, designed to span between ledgers and support steel boards, LVL boards, or timber planks forming the working platform. Equipped with secure wedge or jaw-ended connectors, the transom is designed to lock firmly onto the ledger blades, creating a rigid and stable deck structure with self-aligning connections. Its rectangular or T-section design helps prevent twisting and minimize deflection under heavy loads, making it suitable for demanding construction, infrastructure, and industrial scaffolding applications.
Specifications
•
The Cuplock Transom is manufactured from S355 JR Structural Steel in accordance with EN 10025, using a 48.3 mm outer diameter × 3.2 mm wall thickness tube manufactured to EN 10219. Welding is performed using CO₂ / MIG processes in accordance with ISO 3834-2, while the component features a durable Hot-Dip Galvanized finish in accordance with ISO 1461, with a minimum coating thickness of ≥ 85 µm. The transom is manufactured under recognized quality and safety requirements, including ISO 9001, ISO 3834-2, BS EN 74, and BS EN 12811, with suitability for project-specific requirements such as Aramco GI 8.001 and SABIC §9.4.
